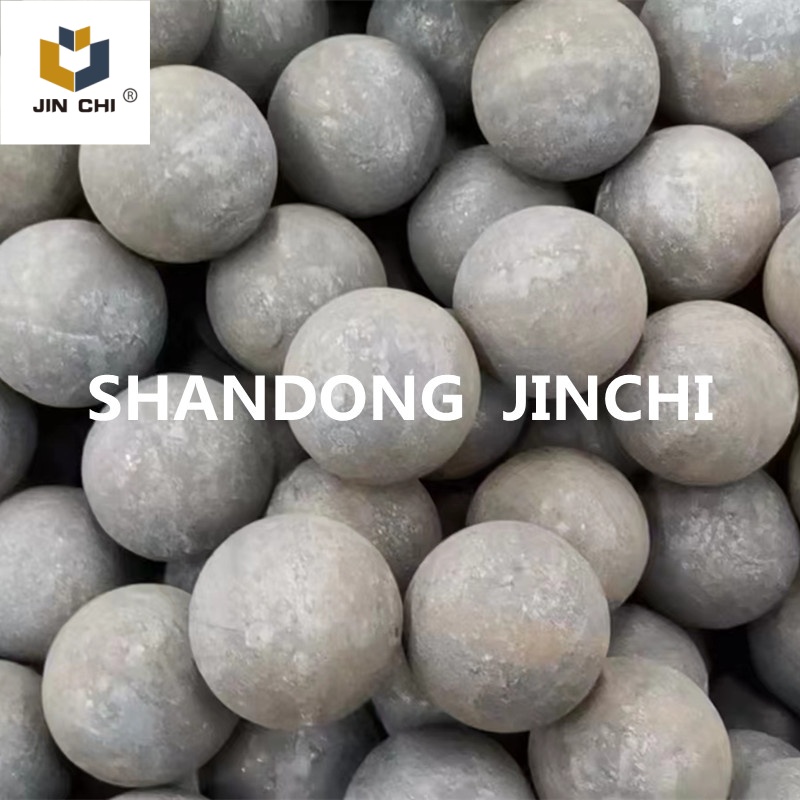

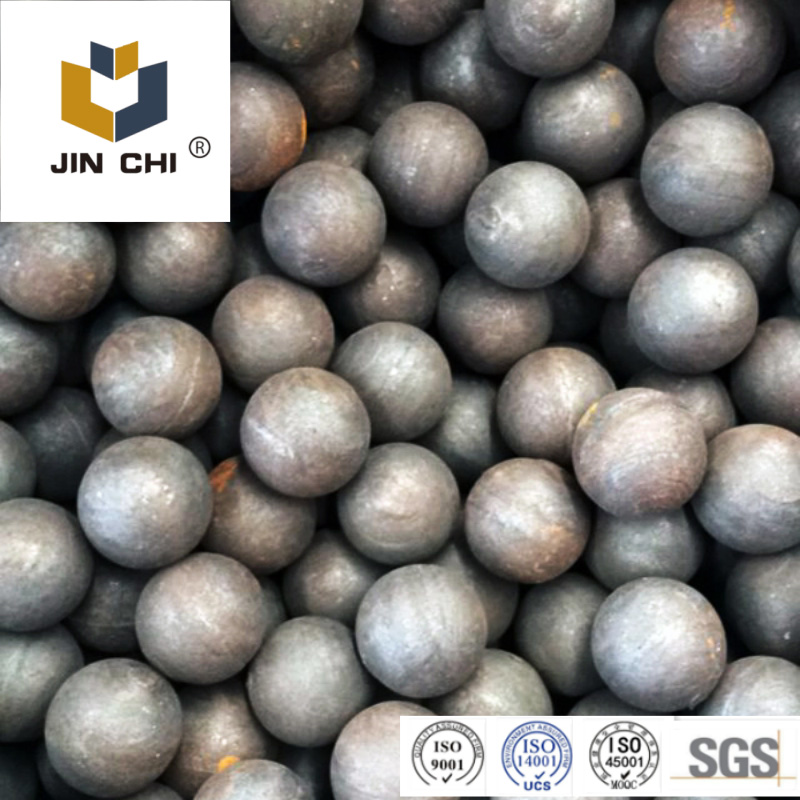

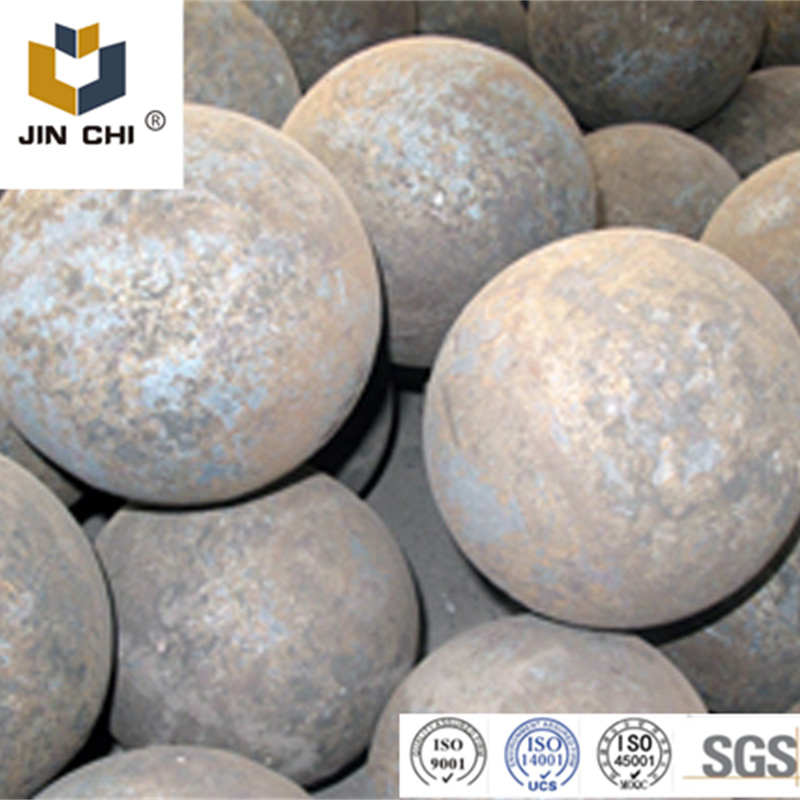

Forged Steel Ball
Product Description:
Shandong Jinchi Heavy Industry Joint-stock Co.,LTD. is a professional manufacturer of durable steel ball production and export enterprises, the production capacity is strong, perennial export to South Korea, Japan, South Africa, the United States, Garner and other countries and regions, by the customer's praise.
Mining grinding ball material list
| Brand | Materials | C % | Si % | Mn% | P% | S % | Cr % | Ni% | Cu % | Mo % | Al % |
| JC-1 | B2 | 0.70-0.85 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | 0.50-0.60 | ≤0.20 | ≤0.20 | / | 0.015-0.050 |
| JC-2 | B2-1 | 0.55-0.70 | 0.15-0.30 | 0.65-0.85 | ≤0.020 | ≤0.020 | 0.70-1.10 | ≤0.20 | ≤0.20 | / | 0.015-0.050 |
| JC-3 | B3 | 0.58-0.66 | 1.70-1.90 | 0.68-0.80 | ≤0.030 | ≤0.030 | 0.78-0.90 | ≤0.20 | ≤0.20 | / | 0.015-0.050 |
| JC-4 | B4 | 0.65-0.75 | 1.20-1.40 | 0.50-0.70 | ≤0.025 | ≤0.025 | 0.85-1.00 | / | ≤0.25 | / | / |
| JC-5 | B6 | 0.75-0.90 | 0.17-0.37 | 0.8-1.02 | ≤0.035 | ≤0.035 | 0.88-0.98 | ≤0.25 | ≤0.25 | 0.06-0.13 | 0.020-0.047 |
| JC-6 | B6-1 | 0.82-0.90 | 0.15-0.35 | 0.90-1.05 | ≤0.020 | ≤0.020 | 0.88-0.98 | ≤0.25 | ≤0.25 | 0.06-0.13 | 0.020-0.047 |
| JC-7 | BU | 0.95-1.05 | 0.15-0.35 | 0.95-1.05 | ≤0.025 | ≤0.025 | 0.45-0.55 | ≤0.06 | ≤0.15 | ≤0.05 | 0.020-0.040 |
| JC-8 | 1090 | 0.90-1.10 | 0.17-0.37 | 0.60-0.90 | ≤0.025 | ≤0.025 | ≤0.25 | ≤0.02 | ≤0.02 | / | / |
| JC-9 | 42CrMo | 0.38-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.90-1.20 | / | / | 0.15-0.25 | / |
| JC-10 | 40Cr | 0.37-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.80-1.10 | / | / | / | / |
| JC-11 | 65MN | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.035 | ≤0.035 | ≤0.25 | / | / | / | / |
| JC-12 | 60MN | 0.57-0.65 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | / | / | / |
| JC-13 | 50MN | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | / | / | / |
| Specification of forged steel Grinding balls | ||||
| Nominal diameter | Diametrical Tolerance | Weight of single ball in average | Surface hardness | Impact toughness |
| (mm) | (mm) | (g) | (HRC) | (j/cm² ) |
| Φ20 | +2 -1 | 32 | ＞60 | ≥12 |
| Φ25 | 64 | |||
| Φ30 | 110 | |||
| Φ40 | 263 | |||
| Φ50 | 513 | |||
| Φ60 | +3 -2 | 888 | ||
| Φ70 | 1410 | |||
| Φ80 | 2104 | |||
| Φ90 | 2996 | |||
| Φ100 | 4110 | |||
| Φ110 | +4 -2 | 5457 | ||
| Φ120 | 7102 | ＞58 | ||
| Φ130 | 9030 | |||
| Φ140 | +4 -3 | 11278 | ＞55 | |
| Φ150 | 13871 | |||
Product performance: uniform hardness, no crushing, high impact, high impact, high efficiency of the mill.
Application areas: cement building materials, mining and metallurgy, power plant, coal, chemical, machinery and other industries
Packing: ton bag (1000KG) (850-900KG).
Welcome to send your message to us
