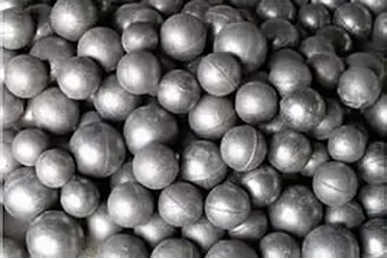

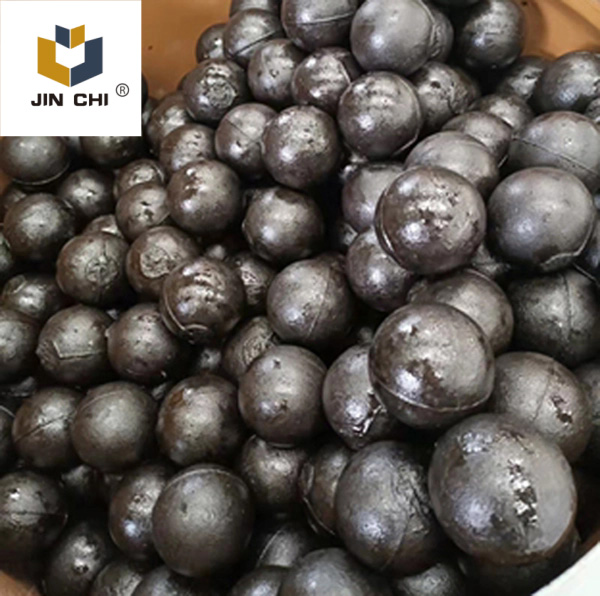

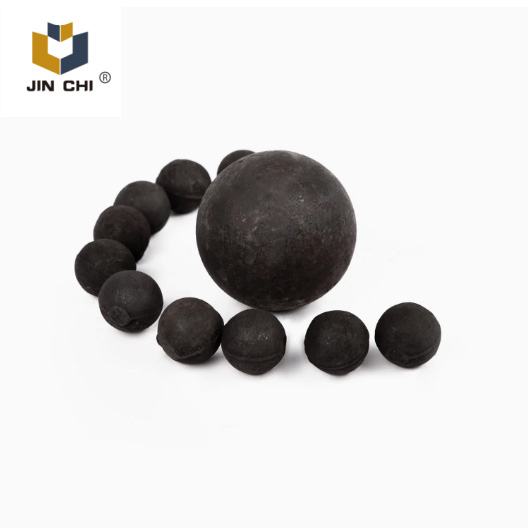

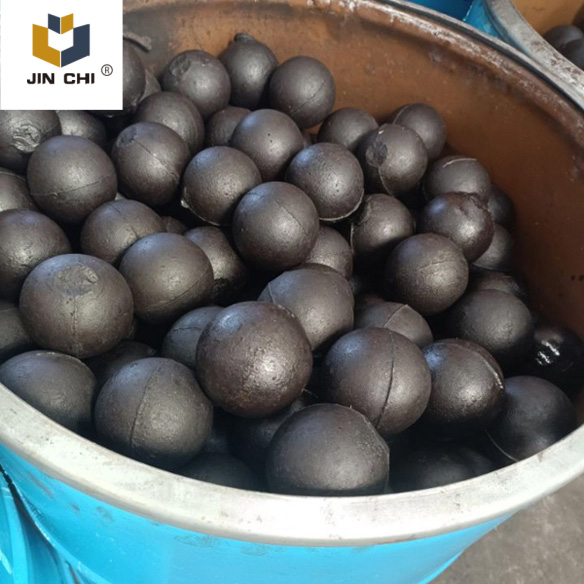

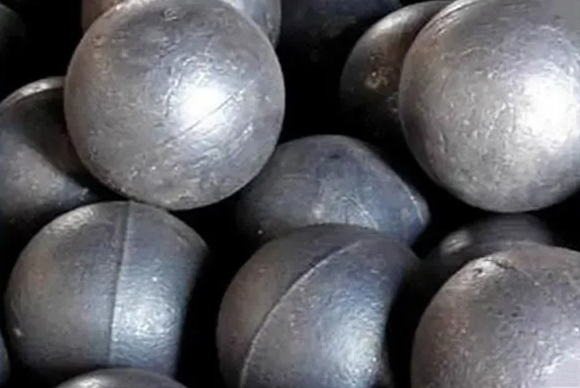

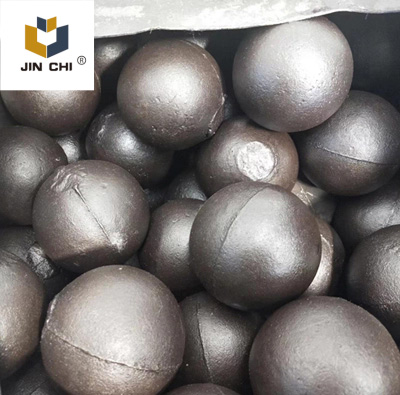

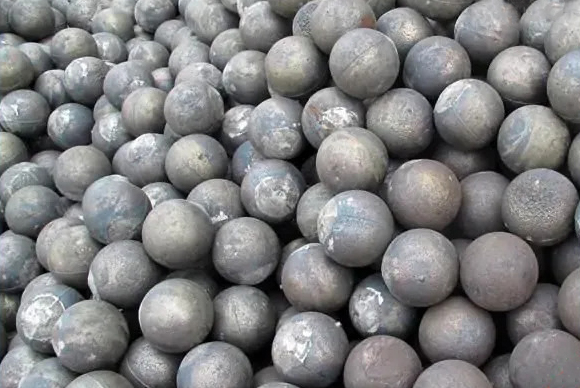

Casting Balls
Product Description:
Shandong Jinchi Heavy Industry Joint-stock Co.,LTD. is made of a fluid melt into a mold, so that the shape of the sphere is cooled, the four main elements are required in the casting process: pattern, mold, core, and part of the original template, created from the corresponding cavity in the casting material. The core is used to manufacture a pipe or hole in the final mold, which is the final output of the process. Casting can be used to form heat, liquid metal. The abrasive medium is subjected to heat treatment to achieve the combination of hardness, toughness and microstructure required to ensure the wear resistance and toughness of the composite.
MECHANICAL PROPERTIES
| Items | Brand | (HRC) Surface hardness | Endurance impact test (Times) | |
| Quenched | Unquenched | |||
| High chrome casting iron ball | JCCr20 | ≥56 | ≥45 | ≥8000 |
| High chrome casting iron ball | JCCr15 | ≥56 | ≥45 | ≥8000 |
| High chrome casting iron ball | JCCr13 | ≥56 | ≥49 | ≥8000 |
| Middle chrome casting iron ball | JCCr7 | ---- | ≥48 | ≥8000 |
| Low chrome casting iron ball | JCCr2 | ----- | ≥45 | ≥8000 |
| Bainite ductile casting iron ball | JCsi3 | ≥50 | ----- | ≥8000 |
Product performance: 1) the hardness of 2) is not broken 3) the impact value of 4) the impact of high 5) the comprehensive efficiency of the mill is high.
SIZES OF CASTING BALLS
| Items | SIZES | |||
| Φ17Φ20Φ25 | Φ30Φ40Φ50 | Φ60Φ70Φ80Φ90 | Φ100Φ110Φ120Φ130 | |
| Tolerance | +1.0 -1.0 | +2.0-1.0 | +3.0-10. | +3.5-1.5 |
| Difference between maxDiam and min diam | ≤ 1.0 | ≤ 2.0 | ≤ 3.0 | ≤ 4.0 |
High Chrome Casting Grinding Ball.
| Item | Chemical Composition(%) | |||||||||
| C | Si | Mn | Cr | P | S | Mo | Cu | Ni | ||
| High chrome cast grinding balls | ZQCr12 | 2.0-3.0 | 0.3-1.2 | 0.2-1.0 | 11-13 | ≤0.10 | ≤0.10 | 0-1.0 | 0-1.0 | 0-1.5 |
| ZQCr15 | 2.0-3.0 | 0.3-1.2 | 0.2-1.0 | 14-17 | ≤0.10 | ≤0.10 | 0-1.0 | 0-1.0 | 0-1.5 | |
| ZQCr20 | 2.0-2.8 | 0.3-1.0 | 0.2-1.0 | 18-22 | ≤0.10 | ≤0.08 | 0-2.5 | 0-2.0 | 0-1.5 | |
| ZQCr26 | 2.0-2.8 | 0.3-1.0 | 0.2-1.0 | 22-28 | ≤0.10 | ≤0.08 | 0-2.5 | 0-2.0 | 0-1.5 | |
| Middle chrome cast grinding balls | ZQCr7 | 2.0-3.2 | 0.3-1.5 | 0.2-1.0 | 6.0-10 | ≤0.10 | ≤0.08 | 0-1.0 | 0-0.8 | 0-1.5 |
| Low chrome cast grinding balls | ZQCr2 | 2.0-3.6 | 0.3-1.5 | 0.2-1.0 | 1.0-3.0 | ≤0.10 | ≤0.08 | 0-1.0 | 0-0.8 | -- |
| Bainite ductile cast grinding balls | ZQsi3 | 3.2-3.8 | 2.0-3.5 | 2.0-3.0 | -- | ≤0.10 | ≤0.08 | -- | -- | -- |
Application areas: cement building materials, mining and metallurgy, coal chemical industry, coal chemical machinery and other industries.
Packing: ton bag (1000KG) (850-900KG).
